Terrazzo Cleaning In Chesterfield Could Not Remove Adhesive

Adhesive Hid the Original Cement-Matrix Terrazzo in a Chesterfield College Hallway

Once the former glue-down tiles were lifted in the Chesterfield College hallway, the exposed areas revealed the original marble-chip pattern and grey cement matrix beneath. This contrasted with the more uniform appearance left by the covering and confirmed that the hallway contained a 1960s cement-matrix floor, not a modern replacement surface.

The floor combined decorative marble chips with a Portland cement binder, forming the hard-wearing aggregate composite commonly found in UK domestic and institutional buildings of that period. Its broad hallway layout reflected the practical demands of college use, with repeated foot traffic concentrated along the main route between rooms.

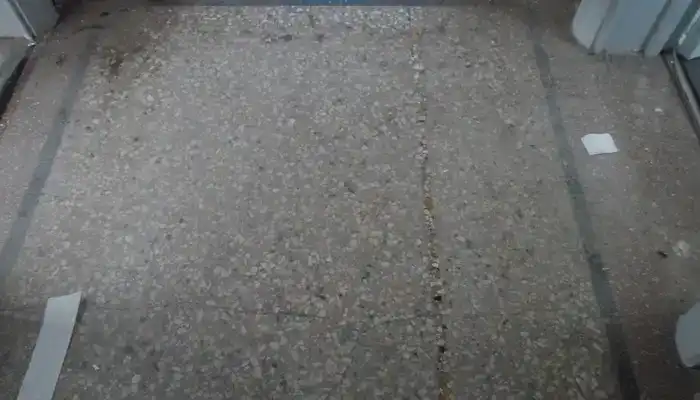

Adhesive remained across part of the exposed surface after the tiles were lifted, making the original terrazzo pattern difficult to see from a normal standing position.

Older institutional buildings in Chesterfield often retain durable finishes in entrance halls and busy connecting routes. Here, that layout had concentrated wear beneath later coverings. The adhesive concealed the floor’s original character, whilst traffic had marked the surrounding areas, creating a continuous restoration issue rather than an isolated stain.

The historic setting also called for appropriate heritage-building experience. The aim was to document the condition accurately and retain a usable hallway surface, without treating the old material as disposable or interchangeable.

Adhesive Marks Had Soaked Into the Hallway Surface

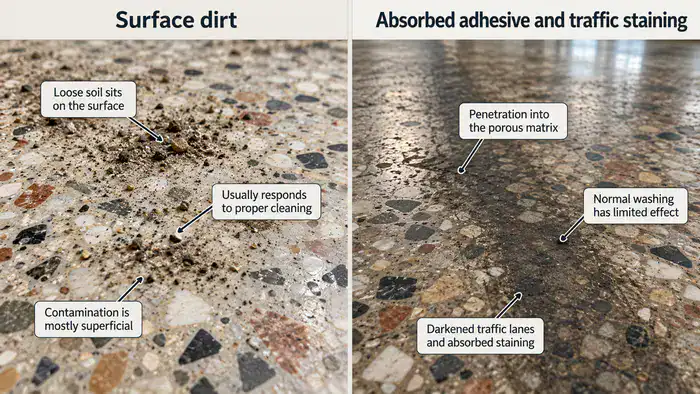

Under consistent light, adhesive residue, dark traffic lanes and dull patches made it clear that the issue extended beyond loose dirt. The affected lane remained darker than a less-worn section nearby, despite both areas receiving the same general attention.

The grey matrix between the marble chips had become more absorbent with age, allowing fine soil and adhesive staining to settle beneath the immediately visible surface. This increase in porosity reflected binder weakness and cement deterioration, whilst surface friability helped explain why repeated cleaning had not restored clarity.

Historic use of strong alkaline products had added progressive damage to an already porous binder. Alkaline chemistry can support controlled deep cleaning and organic soil removal during professional preparation, but residues need full rinsing and contamination extraction. Repeated household use does not reverse matrix breakdown.

The visible dullness was therefore a restoration trigger, not a simple cleaning mark. Cement deterioration, embedded soil and surface wear were all present, with adhesive contamination keeping the original aggregate pattern out of view.

The Damaged Top Layer Had to Be Removed by Mechanical Grinding After Binder Degradation

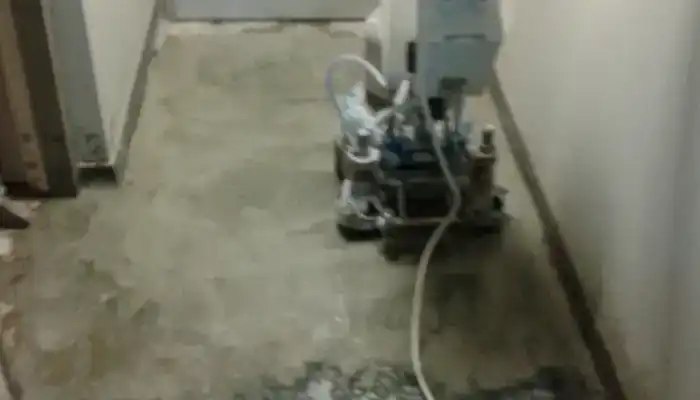

Scrubbing adhesive-stained terrazzo would have left the absorbed contamination and dark traffic lanes in place. The worn surface needed controlled removal, not another wash, so I monitored the planetary grinding machine as it passed across the hallway.

Mechanical grinding used a planetary head to maintain consistent pressure across a large area, whilst metal-bond diamond abrasives provided the aggressive action required for coarse removal. The initial stage cut through adhesive, embedded soil and the degraded layer, then established a flatter plane across the hallway.

Terrazzo is a composite of marble or granite aggregate set in cement or epoxy — and the matrix and aggregate polish at different rates, requiring a controlled diamond progression. In this case, metal-bond diamonds exposed fresher marble fragments and sounder cement below the contaminated surface. Careful machine control prevented unnecessary abrasion.

Grinding also exposed pinholes and micro-voids within the aged matrix. These were natural pores that the worn binder had concealed, rather than damage created by the machine. They could then receive cement filler before further surface refinement.

For broader context on this specialist sequence, see the professional terrazzo polishing process; this Chesterfield project remains the evidence described here.

The New Surface Needed Progressive Honing for a Smooth, Low-Sheen Finish

Resin-bond diamond honing progressively refined the ground terrazzo. Under low-angle light, the remaining grinding marks disappeared as the surface developed a smooth, restrained sheen. The exposed chips became clearer as controlled abrasion replaced the coarse texture left by initial grinding.

I worked through intermediate grits, including 100-grit and 400-grit, then continued towards 800-grit to remove scratches and refine the cement matrix. A honed terrazzo surface has a smooth matte finish, whereas a mechanically polished surface presents the aggregate and matrix as a unified reflective plane under natural light.

The college hallway required a satin finish rather than high gloss, as frequent institutional traffic called for a practical surface that could disguise minor wear. The completed honing gave a uniform matte appearance, clearer aggregate exposure and a finish requiring less effort to maintain than a highly reflective surface.

Protection Was Needed Against Future Spills With an Impregnating Sealer

An impregnating sealer settled into the absorbent cement matrix without leaving a visible film, allowing the restored hallway to retain its natural low-sheen appearance. It suited the renewed surface and preserved its practical satin finish.

The penetrating treatment occupied microscopic pores and slowed absorption, giving staff more time to deal with spills before staining developed. It also supported easier routine cleaning whilst leaving the aggregate and binder visually unchanged.

The sealer did not prevent acid damage, chemical dissolution or scratching. An impregnator works below the surface rather than forming a sacrificial wear layer. Acid contact still causes an immediate reaction across the acid-sensitive matrix and decorative chips, so the treatment improved resistance without making the terrazzo immune to misuse.

The Marble Chips Became Visible Again

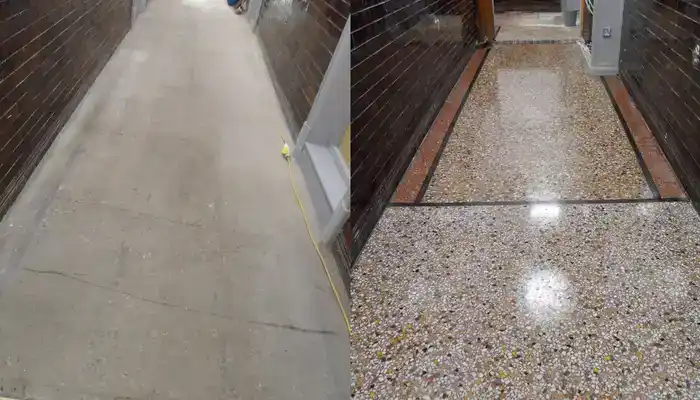

A highly reflective finish alone would not prove a successful restoration. Looking along the Chesterfield hallway, the clearer marble chips, flatter plane and smooth low-sheen surface offered the more meaningful comparison. The completed floor looked significantly better than before intervention because clarity had been restored without compromising practical use.

Before restoration, chip clarity was obscured. Adhesive staining and embedded soil had merged with the darkened cement binder, making the aggregate pattern difficult to follow across the former tile-covered area. The surface appeared uniformly dull, even though the decorative chips remained beneath the contamination.

After mechanical grinding and honing, chip clarity returned. Fresh marble fragments stood out against the refined cement matrix, and the clearer pattern connected the previously concealed section with the rest of the hallway. The improvement came from surface renewal and progressive refinement, rather than increased gloss alone.

Before restoration, the surface plane looked inconsistent. Traffic lanes and adhesive deposits interrupted the visual flow, whilst the worn binder held soil in the areas receiving the greatest footfall. The contrast between the affected lane and less-worn sections made ordinary cleaning appear ineffective.

After resurfacing, the hallway presented a flatter plane. Mechanical grinding corrected minor unevenness, and honing removed the visible scratch pattern to produce a smooth, low-sheen texture suited to college circulation. The result was a uniform matte appearance rather than a falsely glossy finish that would show every new mark.

The completed restoration met the institutional requirement for a hard-wearing, practical finish. It looked significantly better than the adhesive-stained starting condition, became easier to clean and maintain, and retained the honest visual character of an older cement-matrix floor.

Maintenance Guidance for the Restored College Hallway

Pro Tip: We recommend these products for daily Terrazzo maintenance cleaning.

To help preserve the smooth satin finish, clear aggregate detail and practical texture, the college should follow a regular maintenance routine suited to this busy institutional route.

For this hallway, staff could protect the restored satin surface by removing grit before damp mopping with a pH-neutral cleaner, then arranging resealing at the appropriate interval. Correct ongoing maintenance was the single most important factor in extending the floor’s life, whilst dragging grit across the finish could abrade the marble chips.

Persistent dullness after cleaning, reappearing dark patches or uncertainty about previously used products would justify specialist assessment rather than repeated treatment. The wider terrazzo flooring care and restoration information places this completed Chesterfield example within the broader material context.

The Chesterfield College project demonstrated that mechanical resurfacing can recover a concealed aggregate pattern and produce a durable satin finish where cleaning alone has stopped producing change.
